| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
CGI;ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
FTP;RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Non-touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Screen |
4.3-inch display screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
800 (H) × 480 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
1/2.8″ 2MP CMOS high-definition, low illumination, cameras |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 95°; V: 50°; D: 110° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.264; H.265 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Resolution |
Main stream: 720P/D1/WVGA; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
25 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
1,024 kbps–8,192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Compensation |
Auto white light |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
Two-way audio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Verification Method |
Remote;Card;Password |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Snapshot |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Information Release |
Receive and view text information released by the management center. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Leave Videos |
Yes (SD card inserted in VTH is needed) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 cm–4 cm (IC card) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Issue Card Locally |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Stainless steel precision casting |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Capacity |
20,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
1 (they can be set as an input or output port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
1 port (12 V, 500 mA) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 channel, open by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × 10 Mbps/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Password Mode |
User, public and duress passwords |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 2 A; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount;Wall Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Power supply (optional); |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
406 mm × 143 mm × 54.05 mm (15.98″ ×5.63″ × 2.13″) (H × W × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
0%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–1,300 m (0 ft–4265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤5 W (standby), ≤18 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
2.3 kg (5.07 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

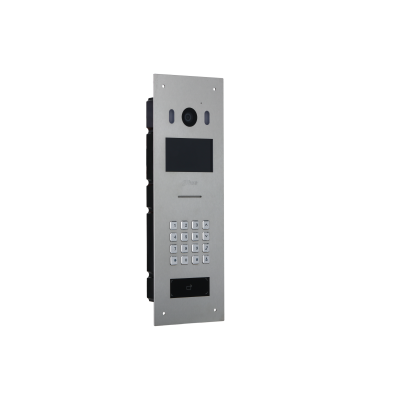

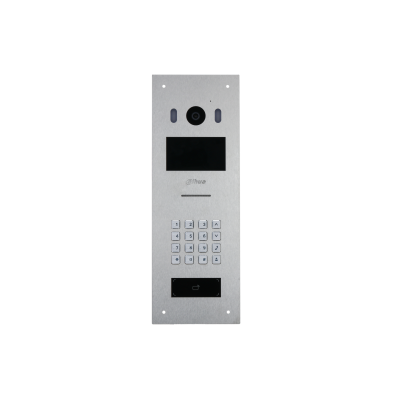

IP Apartment Door Station
Liên hệ
> 2 MP HD camera.
> Supports smart illumination, which can reduce light pollution.
> Supports 40,000 users and 20,000 cards.
> Offers multiple types of alarms such as duress, tamper, emergency and
alarms from door detectors.
> Supports leaving audio and video messages when no one responds
through the indoor monitor. (An SD card in VTH is required).
> Supports multiple unlock methods including password, IC card, QR
code (supported by DSS) and unlocks remotely.
> Unlocks the door through the indoor monitor, management center and
app.
> Provides 12 VDC, 500 mA power for the extension module or card
reader.
> IP65 rated. (Silicone sealant is required for the shell, see the quick start
guide.)
> Standard PoE power supply. (If the VTO device with 12 V power output
needs to charge the load, it should be connected to a PSE switch that
complies with the 802.3.at standard.)
