| Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

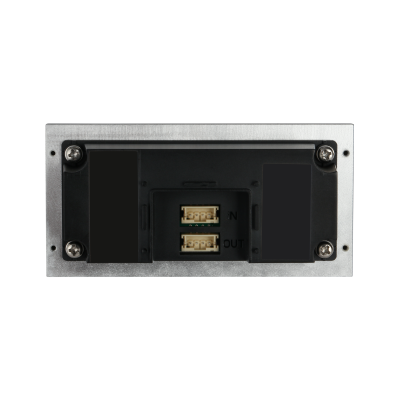

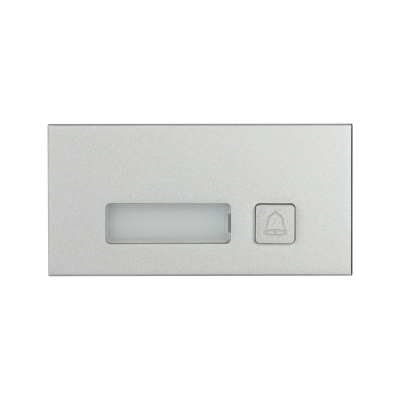

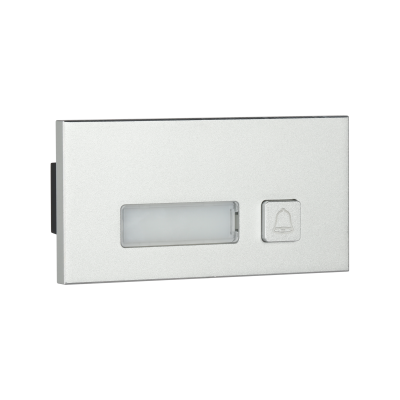

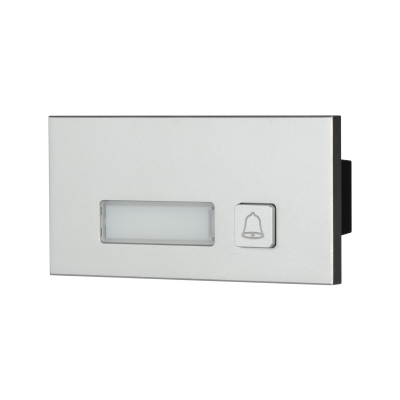

| Model | DHI-VTO4202F-MB1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 50.0 mm × 30.50 mm (3.94″ × 1.97″ × 1.20″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.18 kg (0.40 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MB2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 50.0 mm × 30.50 mm (3.94″ × 1.97″ × 1.2″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65(silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.17 kg (0.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MB5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 100 mm × 30.50 mm (3.94″ × 3.94″ × 1.2″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65(silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.31 kg (0.68 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MDB2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Buttons |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (Provide power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (Provided with power by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE EMC; CE LVD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100.0 mm × 50.0 mm × 26 mm (3.94″ × 1.97″ × 1.02″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (Silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.2 W (standby), ≤0.6 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.23 kg (0.51 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MDB4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Buttons |
4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (Provide power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (Provided with power by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE EMC; CE LVD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100.0 mm × 50.0 mm × 26 mm (3.94″ × 1.97″ × 1.02″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (Silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.2 W (standby), ≤0.6 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.24 kg (0.53 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MDB10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Buttons |
10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (Provide power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (Provided with power by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE EMC; CE LVD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100.0 mm × 100.0 mm × 26 mm (3.94″ × 3.94″ × 1.02″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (Silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.2 W (standby), ≤0.6 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.33 kg (0.73 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 100 mm × 38.50 mm (3.94″ × 3.94″ × 1.52″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.33 kg (0.73 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (Provided with power by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100.0 mm × 100.0 mm × 28.5 mm (3.94″ × 3.94″ × 1.12″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07;IP65(silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30°C to +60°C (–22°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.28 kg (0.62 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount;Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 100 mm × 31 mm (3.94″ × 3.94″ × 1.22″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07;IP65(silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.32 kg (0.71 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-ML |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 50.0 mm × 28.50 mm (3.94″ × 1.97″ × 1.12″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤2 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.19 kg (0.42 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 50.0 mm × 28.50 mm (3.94″ × 1.97″ × 1.12″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.17 kg (0.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.32 kg (0.71 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MR1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
ID card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Modulation Type |
AM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Range |
125 kHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
66 dBuA/m @10 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
1 cm–3 cm (0.39″–1.18″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 50.0 mm × 28.50 mm (3.94″ × 1.97″ × 1.12″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65(silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤2 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.16 kg (0.35 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Modulation Type |
AM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Range |
13.56 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
42 dBuA/m @10 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
1 cm–3 cm (0.39″–1.18″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 50.0 mm × 28.50 mm (3.94″ × 1.97″ × 1.12″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤2 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.16 kg (0.35 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
5 VDC (provides power for other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
5 VDC (provided by other modules) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Flush Mount; Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100 mm × 100 mm × 28.50 mm (3.94″ × 3.94″ × 1.12″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07; IP65 (silicone sealant is needed for installation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤2 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.34 kg (0.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-VTO4202F-MV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Feture |
It is used to install the Vigik module. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Aluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Silver |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
100.0 mm × 50.0 mm × 6 mm (3.94″ × 1.97″ × 0.24″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK07 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH, non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.28 kg (0.62 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
