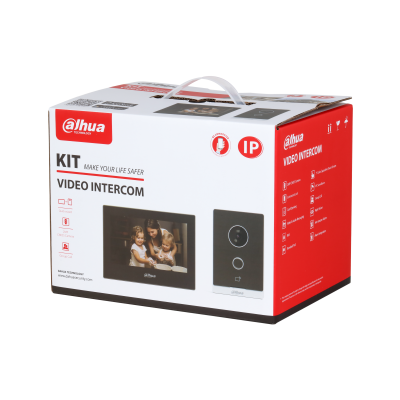

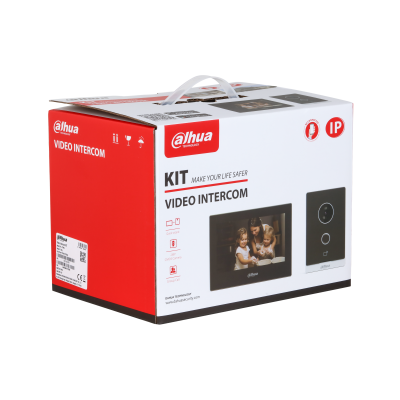

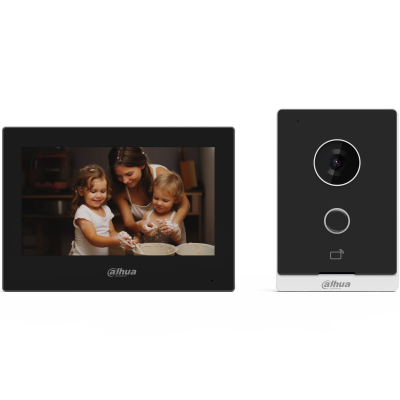

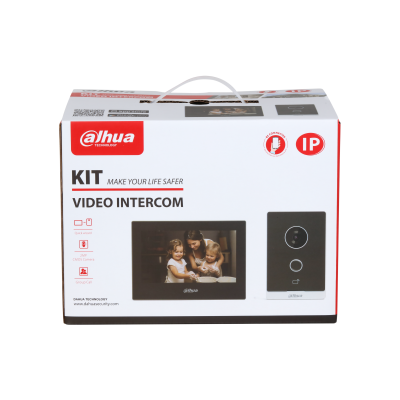

IP & Wi-Fi Video Intercom KIT

Name: IP & Wi-Fi Video Intercom KIT - Chuông cửa có hình
SKU: KTW04

Model: KTW04 | Thương hiệu: N/A | Tình trạng: Còn hàng

Liên hệ

IP & Wi-Fi Villa Door Station

> Thin lightweight design.

> Supports IR illumination and night vision.

> Two-way audio and voice call through app.

> Can be managed through the management platform; support voice call between App and the door station.

> Card unlock, unlock on the indoor monitor, and remote unlock through the App.

> Supports IP65(Silicone sealant is needed. For details, see the quick start guide).

> Supports 10000 cards.

> Support standard PoE power supply.

> Control two locks.

> Support wireless network.

IP & Wi-Fi Indoor Monitor

> 7″ TFT capacitive touchscreen, 1024 × 600.

> 6-channel alarm input and 1-channel alarm output.

> Wi-Fi connection.

> Standard PoE.

> Outdoor station and IPC monitor.

> H.265 and H.264 video decoding.

> High performance and cost-effective.

Chính sách bán hàng

Sản phẩm chính hãng™ 100%
Giá cạnh tranh nhất thị trường
Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Technical Speciﬁcation

Model

DHI-VTO2211G-WP-S2

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.8″ 2 MP CMOS high definition, low illumination/WDR/color/IR

Field of View

H: 125°; V: 71°; D: 142°

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, CIF
Sub stream: 1080p, WVGA, D1, QVGA, CIF

Video Frame Rate

PAL: 25 fps;
NTSC: 30 fps

Video Bit Rate

256 Kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W;Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 KHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card; app; indoor monitor

Card Type

IC card

Auto Snapshot

Yes

Leave Videos

Yes (SD card is inserted in the indoor monitor or door station)

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Max Transmission Power

≤20dBm@2400-2483.5MHz

Storage

Supports Micro SD card (up to 256 GB)

Web Configuration

Yes

Performance

Card Reading Distance

0 cm–4.3 cm (0″–1.69″)

Issue Card Locally

Yes

Casing Material

PC + Acrylic

Capacity

Card Capacity

10000

Port

RS-485

Alarm Input

Alarm Output

Power Output

1 port,12 V and 200 mA

Exit Button

Door Status Detection

Lock Control

1 port, normally closed by default

Network Port

1 × 10M/100M network port

Alarm

Tamper Alarm

Yes

General

Appearance Color

Black plate and silvery frames

Power Supply

12 VDC, 1 A
Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

Accessory

Included: Alarm power ribbon cable, brackets

Product Dimensions

150.0 mm × 100.0 mm × 25.4 mm (5.91” × 3.94” × 1.00”)

Protection

IP65 (silicone sealant is needed, see the quick start guide)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140°F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

Beneath 3,000 m (9842.52 ft)

Operating Environment

Outdoor

Power Consumption

≤ 1 W (standby), ≤ 7 W (working)

Gross Weight

510 g (1.12 lb)

Anti-corrosion Level

Basic Protection

Model

DHI-VTH2621G-WP

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Interoperability

ONVIF

Network Protocol

RTSP; DNS; RTP; SIP; SSH

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7″ TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 KHz; 16 bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

DND Mode

Do not disturb period can be set;Do not disturb mode can be set

Number of Extensions

Villa: 9
Apartment: 4
Wi-Fi intercom: 1 main monitor, 2 extension monitors

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Max Transmission Power

≤20dBm@2400-2483.5MHz

Storage

Micro SD Card, Max 64 GB (reserved for software)

Port

Alarm Input

Alarm Output

Door Bell

Yes (use any alarm input port)

Network Port

1 × RJ-45 , 10/100 Mbps self-adaptive port

Performance

Casing Material

PC + ABS

General

Appearance Color

Black

Power Supply

12 VDC, 1 A
Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Bracket (included)
Alarm ribbon cable (included)

Product Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.46″ × 5.30″ × 1.02″)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

≤ 2 W (standby); ≤ 6 W (working)

Gross Weight

575 g (1.27 lb)

Anti-corrosion Level

Basic Protection
