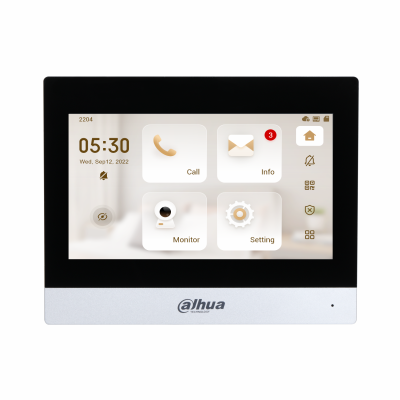

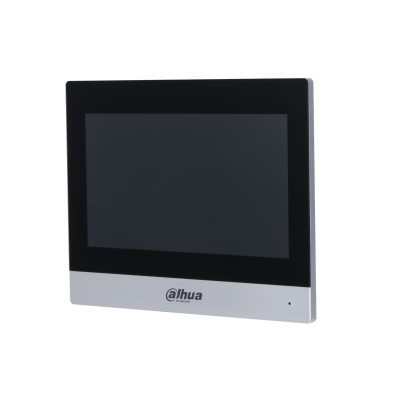

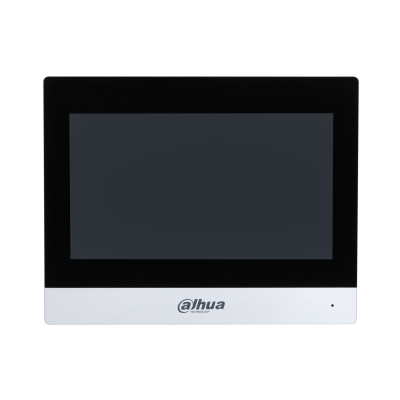

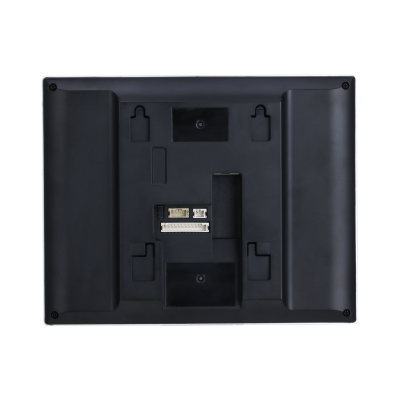

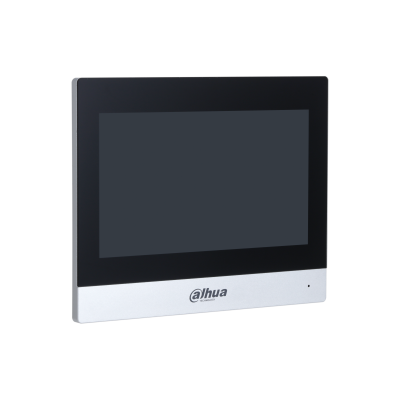

IP& Wi-Fi Indoor Monitor

Operating System

Embedded Linux operating system

Interoperability

ONVIF; SDK

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Basic

Screen Type

Capacitive Touchscreen

Display

7″ TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 Bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 9

Apartment: 4

Wi-Fi intercom: 1 main monitor, 2 extension monitors

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2,412–2,472 MHz

Wireless Security Encryption

WPA/WPA2; WPA-PSK/WPA2-PSK

Storage

Micro SD card (up to 64 GB)

Performance

Casing

Metal

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Door Bell

Yes (use any alarm input port)

Network

One 10 /100 Mbps Ethernet

General

Appearance Color

Siliver

Power Supply

12 VDC 1A
Standard PoE (36–57 V, 0.35 A)

Installation

Surface Mount

Certifications

CE; FCC

Dimensions

185 mm × 147 mm × 22.4 mm (7.28″ × 5.79″ × 0.88″)

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

Standby ≤ 3 W; working ≤ 7 W

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.58 kg (1.28 lb)
