| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Touch button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4;RTSP;UDP;P2P;RTP;TCP;SIP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OSDP Protocol |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF;CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Type |
Standalone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Screen |
4.3-inch display screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Capacitive Touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
480 (H) × 800 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
2-MP CMOS HD dual-lens camera |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Voice Prompt |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Speaker |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
PC + GF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Verification Method |
Card;Password;Remote;QR Code;Face Recognition |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Open Notification Mode |
Quick mode;Simple mode;Standard mode;Comparison mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Period List |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Holiday Period |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
First User Unlock |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Verification |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Restricted List/Trusted List |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advertisement Playing |
Plays advertisements in video and image format |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Peripheral Card Reader |
1 × RS-485 card reader 1 × Wiegand card reader |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-user Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Real-time Monitoring |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-factor Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capture Function |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card;Desfire card (EV3,Compatible with Dahua card by default) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Range |
13.56MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Frequency Range |
2.4 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
≤20dBm@2400-2483.5 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 cm–3 cm (0″–1.18″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Height Range |
1.1 m–2.0 m (3.61 ft–6.56 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Distance |
0.3 m–1.5 m (0.98 ft–4.92 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Accuracy |
99.9% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Time |
0.2s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User (Card) Type |
Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Image Capacity |
6,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Capacity |
6,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Capacity |
10000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Password Capacity |
6000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Capacity |
300000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output Port |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-pass Back |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Sensor Timeout |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intrusion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illegal Card Exceeding Threshold |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Included |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
Stanard PoE 12 VDC, 2 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤24W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
180.1 mm × 90.1 mm × 27.0 mm (7.09″ × 3.55″ × 1.06″) (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
268 mm × 136 mm × 78 mm (10.55″ × 5.35″ × 3.07″) (L × W × H, in an inner carton) 590 mm × 432 mm × 302 mm (23.23″ × 17.01″ × 11.89″) (L × W × H, protection box) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Transport Package Dimensions |
590 mm × 432 mm × 302 mm (23.23″ × 17.01″ × 11.89″) (L × W × H, protection box) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +45 °C (–22 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
0%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–1,300 m (0 ft–4265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Indoor;Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.70 kg (1.54 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Wall mount bracket (included) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall Mount;Surface Mount;Desk Mount;Turnstile Mount;86 mm Junction Box Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +70 °C (-4 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–75% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

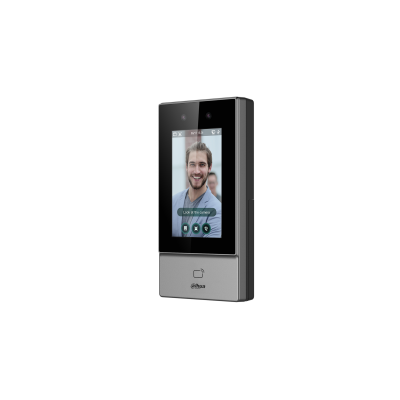

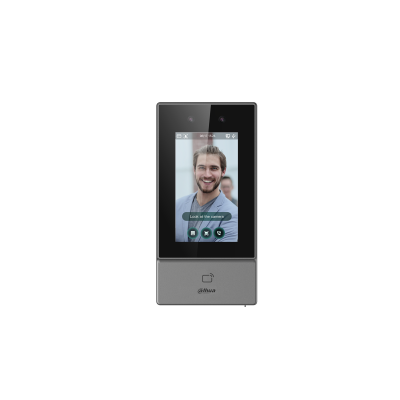

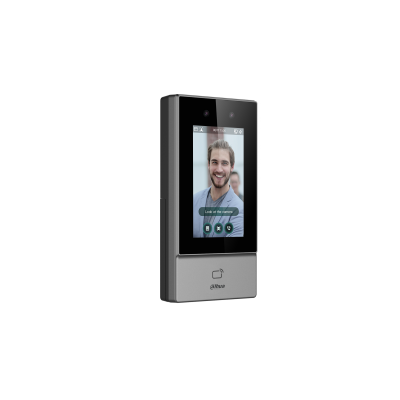

Dahua Face Recognition Access Controller
Liên hệ
>4.3 inch glass touch screen with a resolution of 480 × 800.
>2-MP wide-angle dual-lens camera with IR illumination and DWDR.
>Multiple unlock methods including face, IC card and password. You can also combine them to create your own personal unlock methods.
>Supports 6,000 users, 6,000 faces, 6,000 passwords, 10,000 cards, 50 administrators, and 300,000 records.
>Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft);face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.
>For improved security and to protect against the device being forcefully opened, security module expansion is supported.
>Features face mask detection and safety helmet detection.
>Manages attendance and exports attendance records.
>Supports visitor QR code and doorbell function.
>Supports making video calls and using the app to receive alarm notifications, remotely unlock doors and to perform other tasks.
>TCP/IP and Wi-Fi connection.
>PoE power supply.
>IP65 rated.
>Provides power to the electromagnetic lock and card reader (max 12 V, 1 A).
>2-MP wide-angle dual-lens camera with IR illumination and DWDR.
>Multiple unlock methods including face, IC card and password. You can also combine them to create your own personal unlock methods.
>Supports 6,000 users, 6,000 faces, 6,000 passwords, 10,000 cards, 50 administrators, and 300,000 records.
>Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft);face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.
>For improved security and to protect against the device being forcefully opened, security module expansion is supported.
>Features face mask detection and safety helmet detection.
>Manages attendance and exports attendance records.
>Supports visitor QR code and doorbell function.
>Supports making video calls and using the app to receive alarm notifications, remotely unlock doors and to perform other tasks.
>TCP/IP and Wi-Fi connection.
>PoE power supply.
>IP65 rated.
>Provides power to the electromagnetic lock and card reader (max 12 V, 1 A).
